Waveshare TFT Touch Shield~

Waveshare has a line of TFT Touch Shields for Arduino which are also plug-and-play compatible with the ESPDUINO-32 aka. Wemos “TTGo” D1 R32 board. Unlike many other common Arduino UNO shields the Waveshare displays have an SPI interface with resistive touch controller and backlight control.

Be sure to check if the LCD_BL, LCD_CS and TP_CS pins are present. If these pins are missing, the screen won't work with the pre-compiled builds.

Models~

There are 3 models of this TFT shield:

Model 2.8" Rev 2.1 3.5inch 4.0inch
SKU 10684 13506 13587
Resolution 320x240 480x320 480x320
TFT controller ST7789
(Rev 2.1 only)
ILI9486 ILI9486
Interface SPI SPI SPI
Touchscreen Resistive Resistive Resistive
Touch controller XPT2046 XPT2046 XPT2046
SD Card ✅ yes ✅ yes ✅ yes
Screen dimming ✅ yes ✅ yes ✅ yes

Backlight Control~

All three models come with an LCD_BL pin that allows for backlight control. It is connected to GPIO13 on the D1 R32 development board.

Documentation~

Please visit the Waveshare Wiki pages for more information, schematics and demo code:

Configuration~

Note

By default the DIP switches on the display are set in the ICSP position instead of the SPI position. If your board does not include an ICSP header, you need to switch the display over to use the SPI pins.

To use the MISO, MOSI and SCLK SPI pins you first need to peel of the orange tape that sticks on top of the dip switches. Then move all 3 DIP switches to the ON position with a tiny screwdriver.

The 2.8" model has 3 solder jumpers SB1, SB2 and SB3 that need to be bridged instead!

Development Boards~

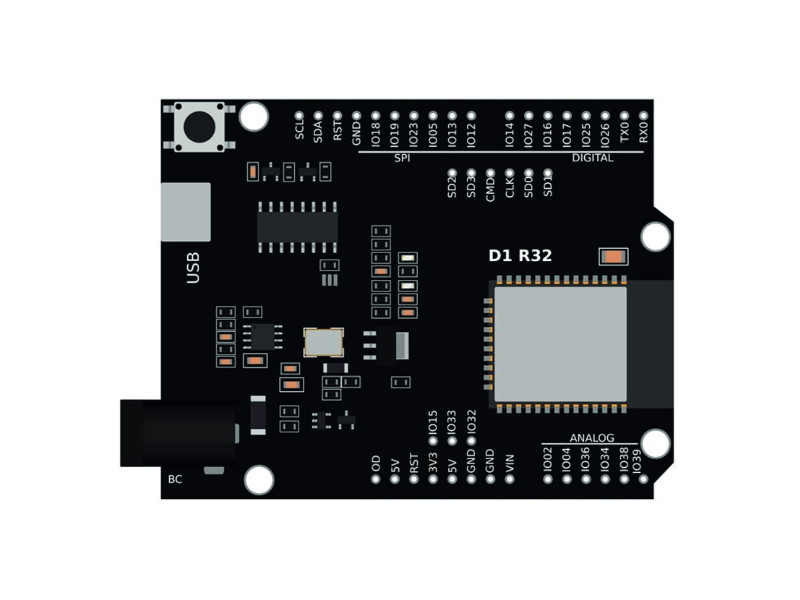

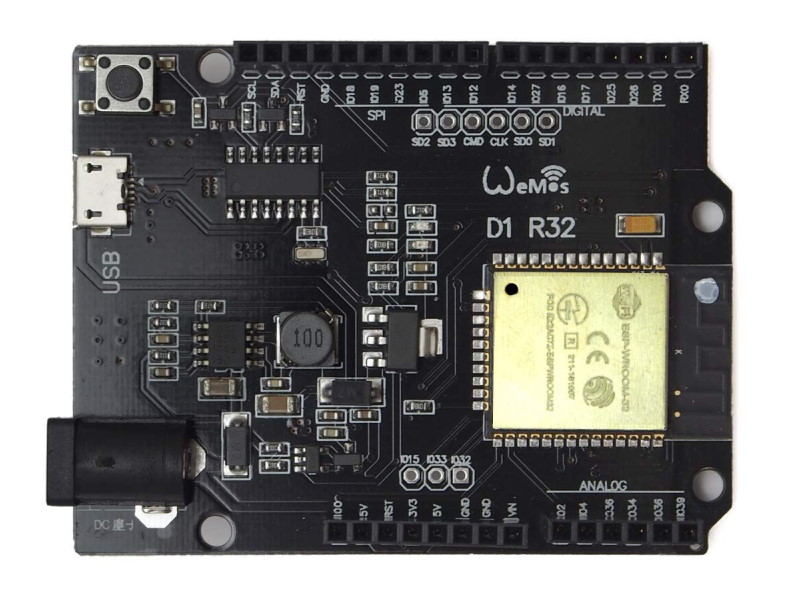

D1 R32~

The Waveshare TFT Touch Shields are compatible with the ESPDUINO-32 aka. Wemos “TTGo” D1 R32 development board. It contains an ESP32-WROOM module with 4MB flash.

Warning

The D1 R32 ESP32 board may suffer from brown-out reboots if not powered adequately.

Arducam IoTai ESP32~

Onboard 4MB PSRAM, 4MByte Flash

To be tested

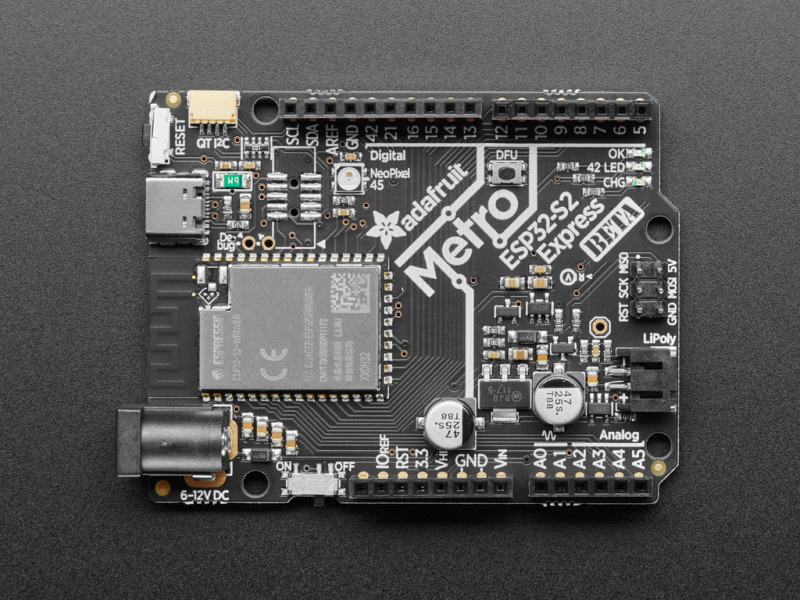

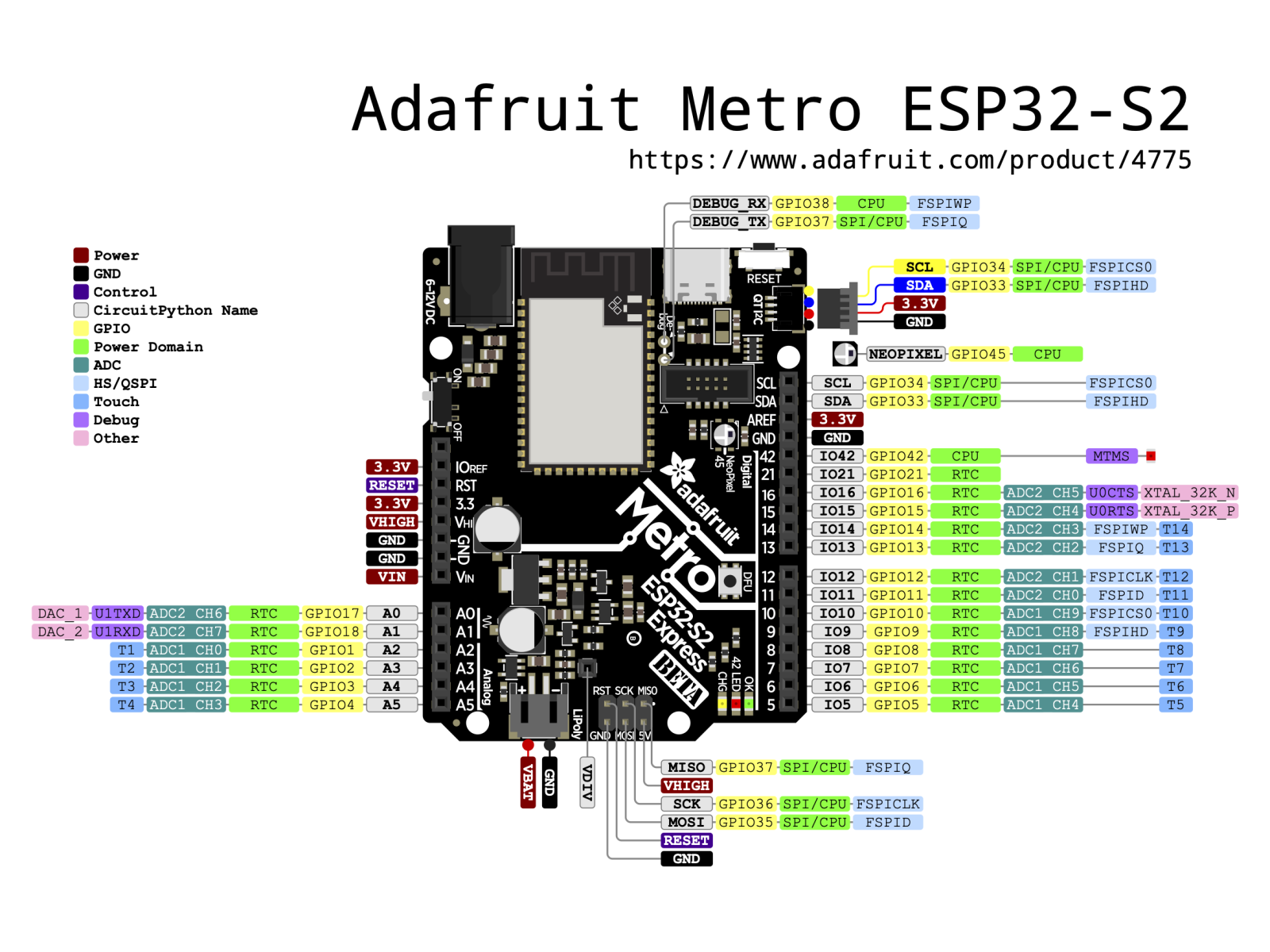

Adafruit Metro ESP32-S2~

With 4 MByte of Flash and 2 MByte of PSRAM

Note

This board has not been tested yet!
